Mavic 3 Thermal
Mavic 3 Thermal
SKU:SKU:CB.202209230395

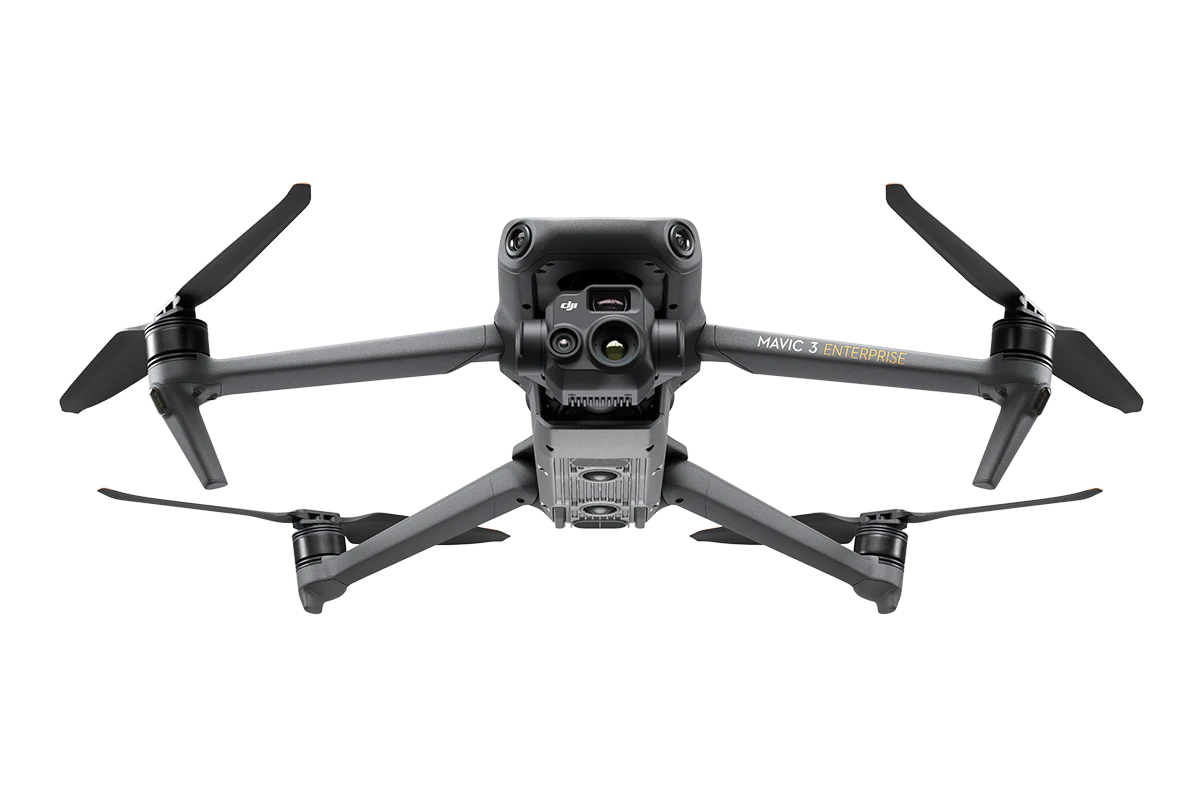

The DJI Mavic 3 Thermal (M3T) is a compact enterprise drone featuring a 48MP wide camera, a telephoto zoom camera, and a 640×512 thermal sensor. It offers up to 45 minutes of flight time and is designed for applications like firefighting, search and rescue, and infrastructure inspections.
Regular price
$6,176.00
Regular price
Sale price
$6,176.00
Unit price
/
per
Share
Drone Country - DJI Mavic 3 Thermal
| General Specifications | |
|---|---|
| Drone Model | DJI Mavic 3 Thermal |
| Dimensions (Folded) | Length: 221 mm Width: 96.3 mm Height: 90.3 mm |
| Dimensions (Unfolded) | Length: 347.5 mm Width: 283 mm Height: 107.7 mm (without propellers) |
| Weight | 920 g (including battery and propellers) |
| Maximum Flight Time | 45 minutes (no wind at 32.4 kph) |
| Maximum Operating Range | 15 km (with O3 transmission system) |
| Ingress Protection Rating | IP54 (dustproof and waterproof) |
| Battery Life Cycle | 200 cycles (recommended for optimal performance) |
| Obstacle Sensing | Omnidirectional obstacle sensing with APAS 5.0 |
| Camera Specifications | |
| Wide-Angle Camera |
Image Sensor: 4/3 CMOS, 20 MP Lens: FOV: 84°, 24 mm equivalent, f/2.8, 1 m to ∞ ISO Range: 100-6400 Shutter Speed: Mechanical: 8-1/2000 s; Electronic: 8-1/8000 s Max Image Size: 5280×3956 Still Photography Modes: Single, Timed, AEB, Panorama Video Resolution: 5.1K: 5120×2700@30fps, 4K: 3840×2160@60fps, FHD: 1920×1080@120fps Video Bitrate: Up to 200 Mbps |
| Thermal Camera |
Thermal Sensor: Uncooled VOx Microbolometer Resolution: 640×512 Frame Rate: 30 Hz Lens: FOV: 61°, 40 mm equivalent, f/1.0, 5 m to ∞ Sensitivity: ≤ 50 mK@F1.0 Temperature Measurement Range: -20° to 150° C (-4° to 302° F) Temperature Measurement Modes: Spot Measurement, Area Measurement |
| Transmission System | |
| Transmission System | O3 |
| Operating Frequency | 2.400-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance | 15 km (unobstructed, free of interference) |
| Live View Quality | 1080p@30fps |
| Intelligent Features | |
| Mapping and Surveying | Waypoint Flight, 2D and 3D Mapping, AI Spot-Check |
| Smart Features | ActiveTrack 5.0, Point of Interest 3.0, QuickShots |
| Battery and Charging | |
| Battery Capacity | 5000 mAh |
| Charging Time | 90 minutes (with 65W charger) |
| Battery Weight | 335 g |
| Environmental and Operational | |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Wind Resistance | 12 m/s |
