Drone Country

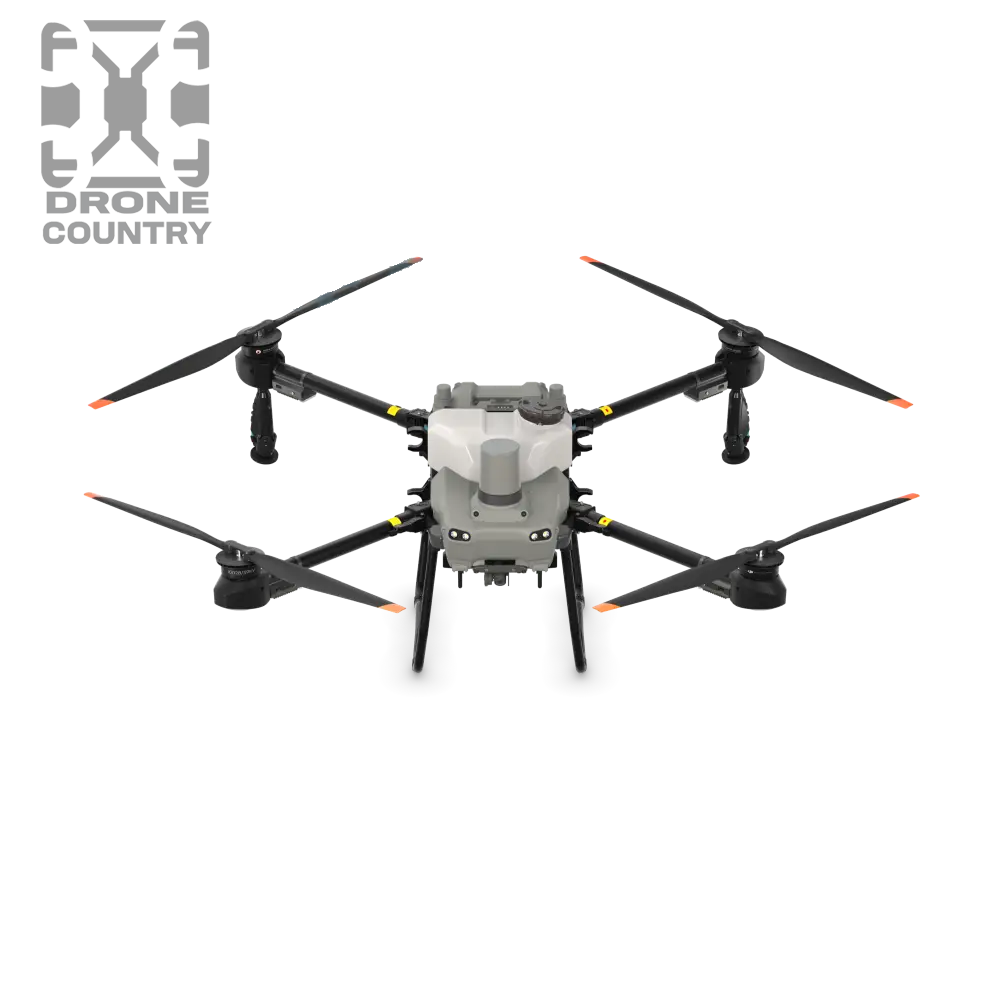

Agras T25
Agras T25
SKU:
The DJI Agras T25 is a compact agricultural drone featuring a 20-liter spray tank and a 25-kilogram spreading capacity. Equipped with front and rear phased array radars, a binocular vision system, and a high-resolution FPV gimbal camera, it ensures precise, efficient, and safe operations across diverse terrains.
Regular price
$10,999.00
Regular price
Sale price
$10,999.00
Unit price
/
per
Share
Drone Country - Agras T25 Specs
| General Specifications | |
|---|---|
| Weight (without battery) | 25.4 kg |
| Weight (with battery) | 32 kg |
| Max Takeoff Weight for Spraying | 52 kg (at sea level) |
| Max Takeoff Weight for Spreading | 58 kg (at sea level) |
| Max Diagonal Wheelbase | 1925 mm |
| Dimensions (unfolded) | 2585×2675×780 mm |
| Dimensions (folded) | 1050×690×820 mm |
| Hovering Accuracy Range (RTK enabled) | Horizontal: ±10 cm, Vertical: ±10 cm |
| Hovering Accuracy Range (RTK disabled) | Horizontal: ±60 cm, Vertical: ±30 cm (radar module enabled: ±10 cm) |
| RTK/GNSS Operating Frequency | GPS L1/L2, GLONASS F1/F2, BeiDou B1I/B2I/B3I, Galileo E1/E5b, QZSS L1/L2 |
| Max Configurable Flight Radius | 2000 m |
| Max Wind Resistance | 6 m/s |
| Propulsion System | |
| Motor Stator Size | 100×28 mm |
| Motor KV | 59 rpm/V |
| Motor Power | 4600 W/rotor |
| Propeller Material | Nylon carbon fiber filament |
| Propeller Dimension | 50 inch |
| Propeller Rotation Diameter | 1270 mm |
| Number of Propellers | 4 |
| Dual Atomizing Spraying System | |
| Spray Tank Material | Plastic (HDPE) |
| Spray Tank Volume | 20 L |
| Operating Payload | 20 kg |
| Number of Sprinklers | 2 |
| Nozzle Distance | 1368 mm (Rear Nozzles) |
| Droplet Size | 50-500 μm |
| Effective Spray Width | 4-7 m (at a height of 3 m above the crops) |
| Delivery Pump Type | Impeller pump (magnetic drive) |
| Number of Delivery Pumps | 2 |
| Single Pump Flow Rate | 0-12 L/min |
| Max Flow Rate | 16 L/min (2 sprinklers), 24 L/min (4 sprinklers) |
| Spreading System | |
| Compatible Material Diameter | 0.5-5 mm |
| Spread Tank Volume | 35 L |
