DRONE COUNTRY
Matrice 3TD
Matrice 3TD
SKU:6941565974716

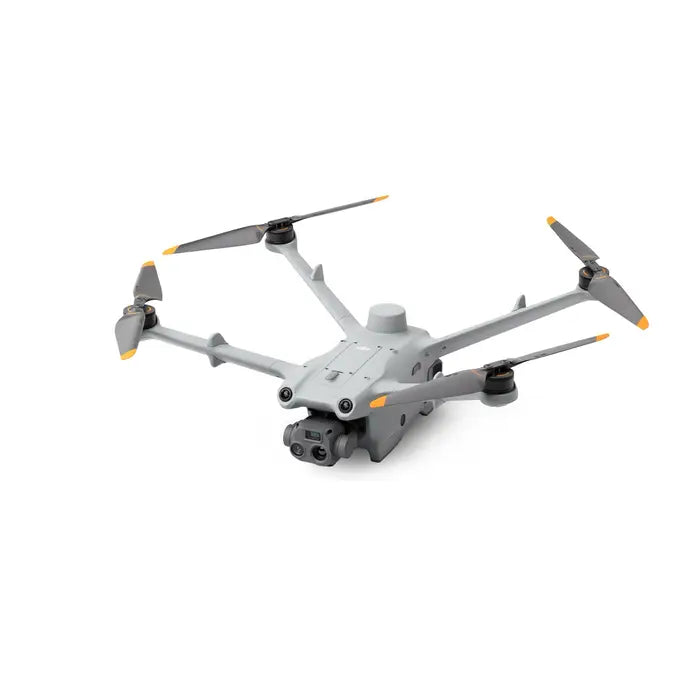

The Matrice 3TD is a compact enterprise drone designed for integration with the DJI Dock 2 system. It features a 48MP wide-angle camera, a 12MP telephoto camera, and a thermal camera with up to 28x digital zoom. With a maximum flight time of 50 minutes and IP54 rating, it’s suitable for various industrial applications.
Regular price
$6,050.00
Regular price
Sale price
$6,050.00
Unit price
/
per
Share
Drone Country - Matrice 3TD Specs
| General Specifications | |
|---|---|
| Drone Model | Matrice 3TD |
| Dimensions | Length: 335 mm Width: 398 mm Height: 153 mm (without propellers) |
| Maximum Flight Time | 50 minutes |
| Maximum Operating Radius | 10 km |
| Ingress Protection Rating | IP54 (dustproof and waterproof) |
| Battery Life Cycle | 400 cycles |
| Obstacle Sensing | 6-directional obstacle sensing system |
| Wide-Angle Camera | |
| Image Sensor | 1/1.32-inch CMOS, 48 MP effective pixels |
| Lens | Field of View (FOV): 82° Format Equivalent: 24 mm Aperture: f/1.7 Focus: 1 m to ∞ |
| ISO Range | 100-25600 |
| Shutter Speed | Electronic Shutter: 8-1/8000 s |
| Max Image Size | 8064×6048 |
| Still Photography Modes | Single: 12 MP, 48 MP Timed: 12 MP, 48 MP, intervals of 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Low-Light: 12 MP Panorama: 12 MP (raw image); 100 MP (stitched image) |
| Video Resolution | H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Video Bitrate | 4K: 85 Mbps FHD: 30 Mbps |
| Tele Camera | |
| Image Sensor | 1/2-inch CMOS, 12 MP effective pixels |
| Lens | Field of View (FOV): 15° Format Equivalent: 162 mm Aperture: f/4.4 Focus: 3 m to ∞ |
| ISO Range | 100-25600 |
| Shutter Speed | Electronic Shutter: 8-1/8000 s |
| Max Image Size | 4000×3000 |
| Still Photography Modes | Single: 12 MP Timed: 12 MP, intervals of 0.7/1/2/3/5/7/10/15/20/30/60 s Smart Low-Light: 12 MP |
| Video Resolution | H.264 4K: 3840×2160@30fps FHD: 1920×1080@30fps |
| Video Bitrate | 4K: 85 Mbps FHD: 30 Mbps |
| Digital Zoom | 8x (56x hybrid zoom) |
| Infrared Camera | |
| Thermal Imager | Uncooled VOx Microbolometer |
| Pixel Pitch | 12 μm |
| Frame Rate | 30 Hz |
| Lens | Field of View (FOV): 61° Format Equivalent: 40 mm Aperture: f/1.0 Focus: 5 m to ∞ |
| Sensitivity | ≤ 50 mK@F1.0 |
| Temperature Measurement Method | Spot Measurement, Area Measurement |
| Temperature Measurement Range | -20° to 150° C (-4° to 302° F) |
