DRONE COUNTRY

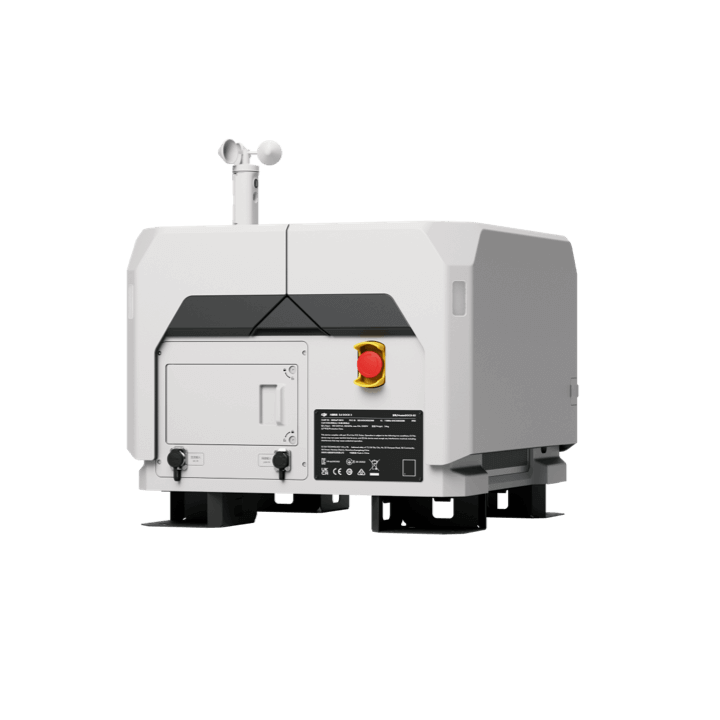

Dock 2
Dock 2
SKU:
The DJI Dock 2 is a compact, autonomous drone docking station designed for the Matrice 3D/3TD series. It enables automated, scheduled missions with a 10 km operational range and 50-minute flight duration, enhancing efficiency in various industrial applications.
Regular price
$9,000.00
Regular price
Sale price
$9,000.00
Unit price
/
per
Share
Drone Country - DJI Dock 2 System
| General Specifications | |
|---|---|
| Product Name | DJI Dock 2 |
| Dimensions | Length: 820 mm Width: 820 mm Height: 420 mm |
| Weight | 34 kg (including battery) |
| Ingress Protection Rating | IP55 (dustproof and waterproof) |
| Operating Temperature | -35° to 50° C (-31° to 122° F) |
| Storage Temperature | -40° to 60° C (-40° to 140° F) |
| Power Consumption | Standby: 50 W Charging: 600 W |
| Battery Capacity | 4200 Wh |
| Charging Time | 25 minutes (for DJI Matrice 3D/3TD drones) |
| Compatibility | |
| Compatible Drones | DJI Matrice 3D, DJI Matrice 3TD |
| Payload Support | Supports payloads compatible with Matrice 3D/3TD |
| Connectivity | |
| Transmission System | O3 Enterprise |
| Operating Frequency | 2.400-2.4835 GHz, 5.725-5.850 GHz |
| Max Transmission Distance | 10 km (unobstructed, free of interference) |
| Live View Quality | 1080p@30fps |
| Intelligent Features | |
| Automated Operations | Autonomous takeoff, landing, and charging |
| Remote Monitoring | Real-time status updates and alerts |
| Mission Planning | Supports pre-planned missions for drones |
| Environmental and Operational | |
| Wind Resistance | 15 m/s (during operation) |
| Dust and Water Resistance | IP55-rated for harsh environments |
| Installation | Ground-mounted or rooftop installation options |
