Drone Country
Agras T40
Agras T40
SKU:

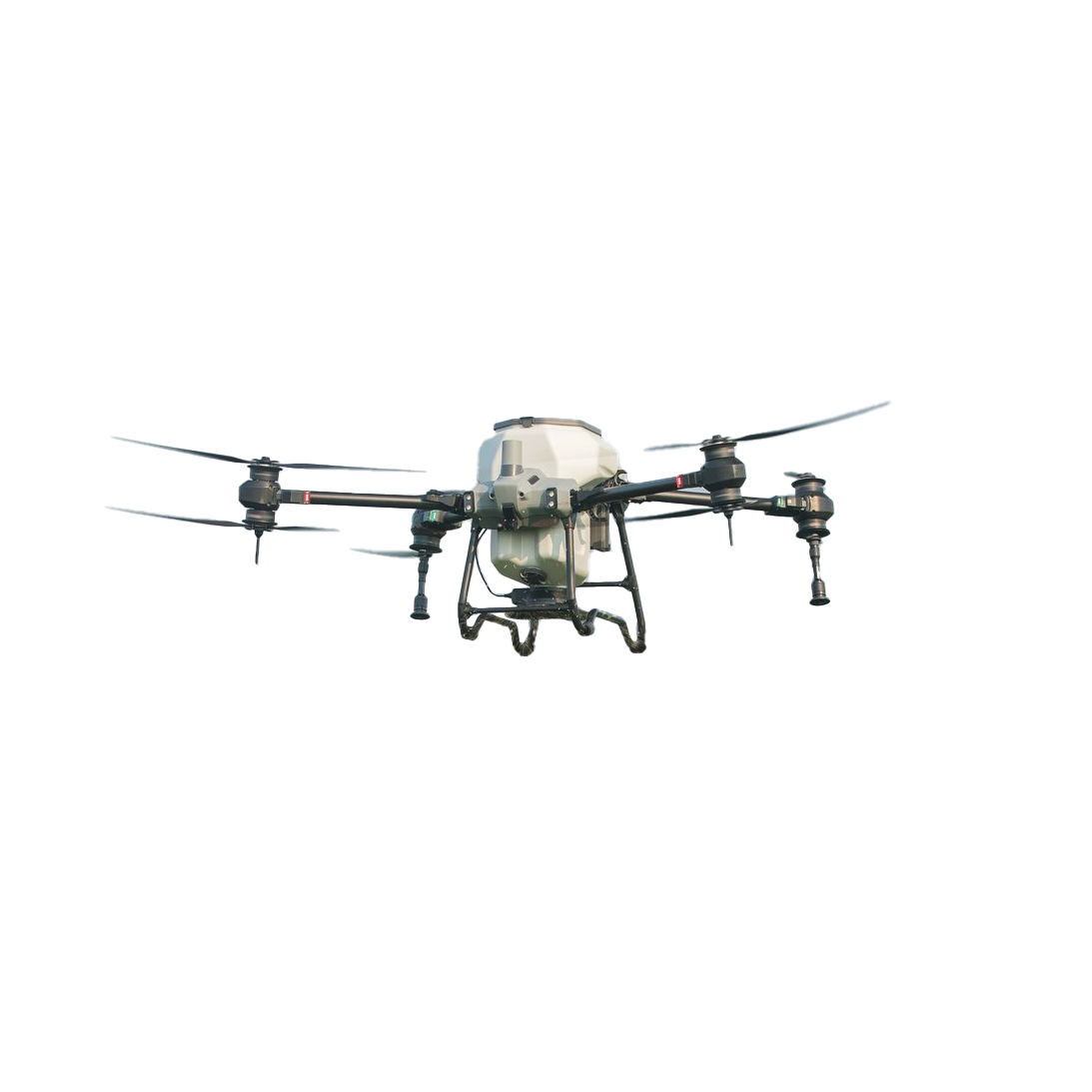

The DJI Agras T40 is a high-performance agricultural drone designed for efficient crop spraying and spreading. Featuring a dual atomized spraying system and a payload capacity of up to 40 kg, it ensures precise and even application of pesticides, fertilizers, and seeds. Equipped with advanced radar and AI capabilities, the T40 delivers exceptional obstacle avoidance and terrain adaptation, enabling operations in diverse farming conditions. With its robust design, long flight time, and intelligent route planning, the Agras T40 sets a new standard for modern agricultural efficiency.
Regular price
$13,499.00
Regular price
Sale price
$13,499.00
Unit price
/
per
Share
Drone Country - Agras T40 Specs
| General Specifications | |
|---|---|
| Drone Type | Coaxial Twin Rotor Quadcopter |
| Weight (without battery) | 38 kg |
| Weight (with battery) | 50 kg |
| Max Takeoff Weight for Spraying | 90 kg (at sea level) |
| Max Takeoff Weight for Spreading | 101 kg (at sea level) |
| Dimensions (unfolded) | 2800 mm × 3150 mm × 780 mm |
| Dimensions (folded) | 1125 mm × 750 mm × 850 mm |
| Maximum Speed | 10 m/s |
| Maximum Flight Radius | 2000 m |
| Operating Temperature Range | -10°C to 45°C |
| Operating Humidity Range | 30% to 90% RH |
| Maximum Wind Resistance | 6 m/s |
| Waterproof Level | IPX6K (IP67 for modules) |
| Anti-Corrosion Level | NSS24H |
| Spray System | |
| Standard Tank Capacity | 40 liters |
| Spray Width | Up to 11 meters |
| Spray Efficiency | Up to 21.33 hectares per hour |
| Nozzle Type | Dual Atomized Sprinkler |
| Droplet Size Range | 50 to 500 microns |
| Flow Rate | Up to 12 liters per minute |
| Battery and Charging | |
| Battery Model | BAX601-30000mAh-52.22V |
| Battery Weight | Approx. 12 kg |
| Battery Capacity | 30000 mAh |
| Battery Voltage | 52.22 V |
| Charging Time | 9-12 minutes with D12000iE Multifunctional Inverter Generator |
| Generator Fuel Tank Capacity | 30 L |
| Generator Max Power | 12000 W |
| Fuel Type | Gasoline |
| Spreading System | |
| Spreader Tank Capacity | 70 liters |
| Spreading Payload | 50 kg |
| Spreading Rate | Up to 1.5 tonnes per hour |
| Material Compatibility | Solid dry particles with a diameter of 0.5 to 5 mm |
| Spreading Width | Up to 7 meters |
